Furan Resins
Furan Resins Liquid
Product Overview
No-Baking Furan Resins are liquid thermosetting resins used mainly as a sand binding agent in foundry applications.
They react with a hardener to form strong sand molds and cores used in metal casting processes.
These resins provide high strength, excellent casting surface finish, and good resistance to high temperatures, making them suitable for continuous foundry production.
Available Types
MCI-FR301
MCI-FR302
MCI-FR303
All grades are supplied as yellowish brown clear liquid.

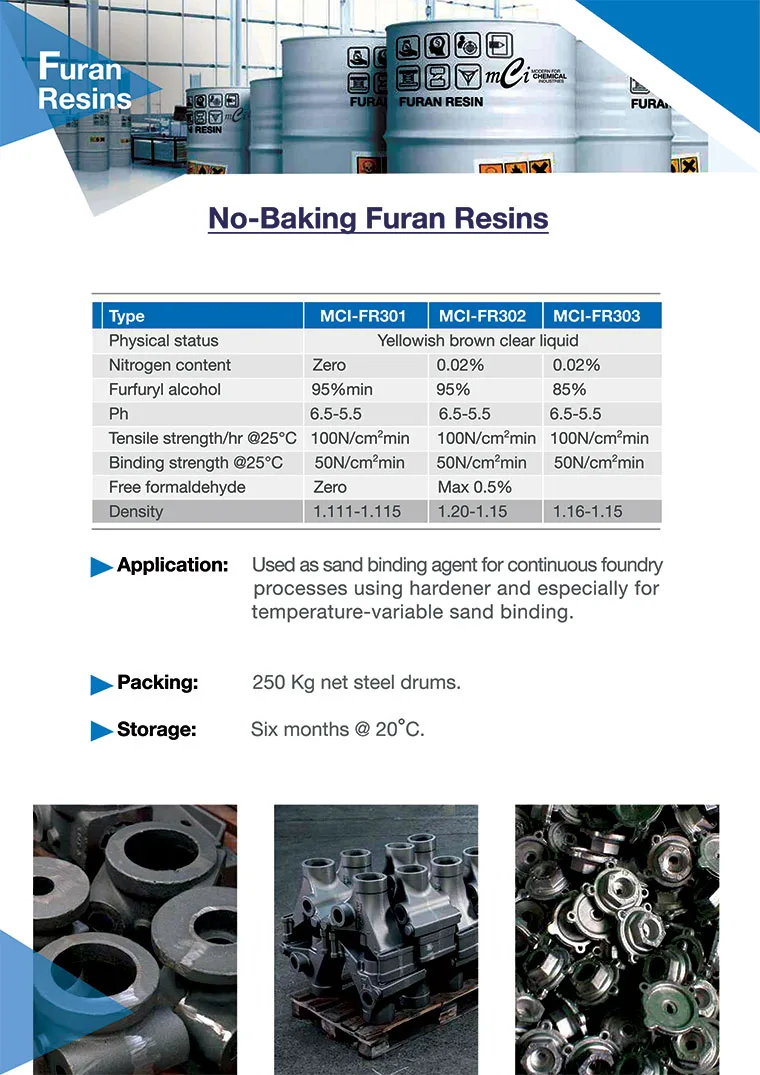

Technical Properties
| Property | FR301 | FR302 | FR303 |
|---|---|---|---|
| Physical Status | Yellowish brown clear liquid | ||
| Nitrogen Content | Zero | 0.02% | 0.02% |
| Furfuryl Alcohol | ≥95% | 95% | 85% |
| pH | 5.5 – 6.5 | 5.5 – 6.5 | 5.5 – 6.5 |
| Tensile Strength / hr @25°C | ≥100 N/cm² | ||
| Binding Strength @25°C | ≥50 N/cm² | ||
| Free Formaldehyde | Zero | Max 0.5% | |
| Density | 1.111 – 1.115 | 1.15 – 1.20 | 1.15 – 1.16 |
Application
Furan resin is mainly used as a sand binding agent for continuous foundry processes, especially in systems using acid hardeners and temperature-variable sand binding.
Typical casting applications include:
Cast iron parts
Steel castings
Industrial machinery components
Automotive casting parts
Packaging
250 kg net steel drums
Storage
Shelf life: 6 months at 20°C
Store in a cool and dry place
Keep containers tightly closed
